Shelf Span Physics & Deflection Formulas
Shelf deflection (sag) follows predictable physics based on material properties, dimensions, span length, and load. Understanding these relationships enables accurate span calculations.
Last updated: 2026-02-27
Shelf Span Calculator - Maximum Shelf Length & Load Capacity Tool
Free shelf span calculator for accurate shelving design. Calculate maximum shelf length, load capacity, and deflection for wood shelves, plywood, and MDF. Determine safe shelf spans, prevent sagging, and optimize support spacing. Includes material specifications, sag calculator, and strength analysis for bookshelf, closet, and cabinet design.
Load Analysis Sag Calculation Wood Species Safety Factors
Shelf Specifications
Material Type
Wood Species
Shelf Dimensions
Load Distribution
Shelf Analysis
Enter shelf specifications to calculate load capacity, sag analysis, and support requirements for your shelving project.
Shelf calculations are estimates for typical residential use. For commercial, heavy loads, or critical installations, consult a structural engineer.
Always use appropriate safety factors and quality materials. Test with full load before permanent installation.
How to Use This Calculator
- 1 Select Material Type Choose from 6 types: Solid Wood, Plywood, MDF, Particle Board, Melamine, or Metal.
- 2 Choose Wood Species For solid wood: 10 species from Oak to Mahogany. Species determines MOE (stiffness).
- 3 Enter Dimensions Input span (length between supports), depth (front to back), and thickness.
- 4 Set Load & Safety Enter expected load in lbs/kg, load type (uniform/point/mixed), and safety factor (2x-5x).
- 5 Review Analysis Get deflection (sag), load capacity, maximum span recommendation, and support spacing.
Pro Tip: Deflection increases with the CUBE of span length. Doubling the span increases sag by 8x! For long shelves, adding a center support halves the effective span and allows 4x more load.
δ = (5 × W × L³) ÷ (384 × E × I) | Application | Limit | Sag on 10ft Span |
|---|---|---|
| Light-Duty (Display) | L/240 | 0.5" |
| Standard (Books, Storage) | L/360 | 0.33" |
| Heavy-Duty (Commercial) | L/480 | 0.25" |
| Precision (Cabinet) | L/600 | 0.2" |
L/360 recommended for general woodworking. Visible sag becomes noticeable at ~1/4" for most people.
Wood Species Strength Properties & MOE Values
Different species have vastly different stiffness (MOE) and strength properties. Selecting appropriate species is critical for achieving target span-to-thickness ratios.
High-Stiffness Hardwoods (Longest Spans)
- Hickory: 2.16M psi — Strongest North American hardwood
- Hard Maple: 1.83M psi — Excellent stiffness-to-weight ratio
- Red Oak: 1.82M psi — Popular, affordable, readily available
- White Oak: 1.78M psi — Good availability and cost
Medium-Stiffness (Standard Applications)
- Walnut: 1.68M psi — Premium appearance, good stiffness
- Cherry: 1.49M psi — Beautiful, moderate strength
- Douglas Fir: 1.95M psi — Strongest common softwood
Engineered Materials
- Baltic Birch Plywood: ~1.6M psi effective MOE
- MDF: ~0.4M psi — Poor for spans, needs support
- Particleboard: ~0.3M psi — Not recommended for shelving
Shelf Span Comparison: 3/4" × 12" Shelf, 50 lb Uniform Load
- Hickory (2.16M psi): Max span 36" at L/360 — deflection 0.10"
- Oak (1.80M psi): Max span 33" — deflection 0.12" at 36" (exceeds L/360)
- Pine (1.24M psi): Max span 27" — deflection 0.17" at 36" (significant sag)
- Conclusion: Species selection significantly impacts achievable span
Load Capacity Calculation & Safety Factors
Load Types
- Uniform Load: Evenly distributed (books, folded clothes). Formula: (5WL³) ÷ (384EI)
- Point Load: Concentrated at one location. 4× more deflection than uniform! Formula: (WL³) ÷ (48EI)
| Contents | Weight per Linear Foot |
|---|---|
| Books (Hardcover) | 20-30 lbs/ft |
| Clothing/Linens | 10-15 lbs/ft |
| Kitchen (Dishes) | 25-35 lbs/ft |
| Tools/Hardware | 30-50 lbs/ft |
| Commercial Storage | 50-100+ lbs/ft |
Use these reference weights for planning. Always verify with actual items when possible.
Shelf Support Optimization
- Add Center Support: Reduces effective span 50%, allows 4× more load
- Increase Thickness: Doubling thickness (3/4" → 1.5") reduces deflection 8×
- Edge Banding: Solid wood front edge adds 30-50% stiffness to plywood
- Vertical Supports: Partition walls every 24-30" dramatically increase capacity

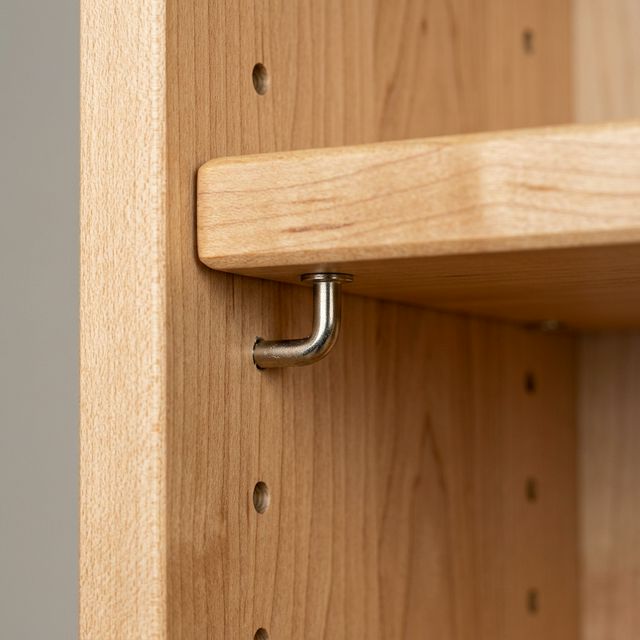

- Adjustable Pins: Allow repositioning but reduce capacity 10-20% vs. fixed dado
Glossary of Terms
The downward bending of a shelf under load. Measured in inches at the point of maximum displacement (center for uniform loads). Acceptable limits range from L/240 to L/600.
A measure of material stiffness in psi. Higher MOE = stiffer material = less deflection. Oak: 1.82M psi. Pine: 1.24M psi. MDF: 0.4M psi.
A geometric property that measures cross-section resistance to bending. For rectangular shelves: I = (Width × Thickness³) ÷ 12. Doubling thickness increases I by 8×.
Load distributed evenly across the shelf length. Examples: books, folded clothes. Uses formula (5WL³) ÷ (384EI) for deflection calculation.
Load concentrated at a single location. Creates 4× more deflection than the same weight distributed uniformly. Uses formula (WL³) ÷ (48EI).
Multiplier applied to expected load for engineering margin. 2× minimum, 3× recommended, 4-5× for commercial/critical. Design Load = Expected Load × Safety Factor.
The unsupported length of a shelf between supports. Deflection increases with the CUBE of span (L³) — doubling span increases sag 8×.
A deflection limit standard meaning maximum sag = span ÷ 360. For a 36" shelf: max 0.10" sag. The most common standard for residential shelving.
Frequently Asked Questions
What is the maximum span for a 3/4" plywood shelf?
A 3/4" plywood shelf can typically span 24-30 inches with moderate loading (20-30 lbs/sq ft). For heavier loads or minimal sag, limit span to 18-24 inches or add center support.
How much sag is acceptable for shelving?
Acceptable sag is typically 1/360 of span (about 1/8" for a 36" shelf). For appearance-critical applications, limit sag to 1/480. Visible sag becomes noticeable at about 1/4" for most people.
Which wood species are best for shelving?
Hard maple, oak, and ash are excellent due to high MOE. Cherry and walnut offer good strength with attractive appearance. For painted shelves, poplar is economical. Avoid soft woods like white pine for long spans.
How do I calculate load for books on shelves?
Books weigh 15-20 lbs/ft for paperbacks, 20-25 for hardcovers, 25-35 for reference books. Use 25-30 lbs/ft for mixed collections on 8-12" deep shelves.
When should I add center supports?
Add center supports when span exceeds material capabilities, when sag is visible, or for heavy loads. Generally, spans over 30" benefit from support. Center supports effectively halve the span.
How does shelf thickness affect load capacity?
Capacity increases with the CUBE of thickness. Doubling thickness (3/4" to 1.5") increases capacity by 8×. This is the most effective way to increase shelf strength.
